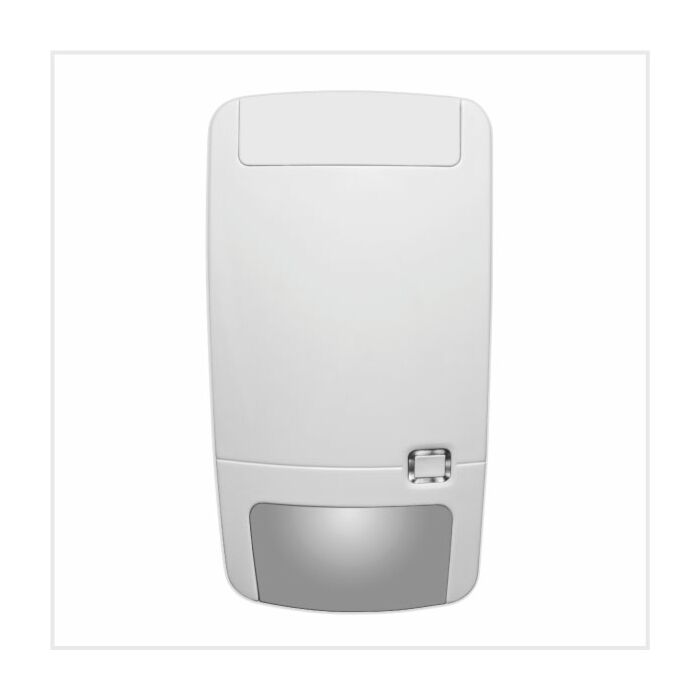

Aritech 12m Wireless PIR
Proven mirror optics inside to get a dense coverage pattern
Selectable coverage pattern using mirror masks
Full under crawl detection
"5D" signal...
Proven mirror optics inside to get a dense coverage pattern
Selectable coverage pattern using mirror masks
Full under crawl detection
"5D" signal processing for false alarm immunity
Auto focus with constant range sensitivity
No adjustment required for different mounting heights
Tolerates wall angle deviation
End-user friendly product design for exchanging batteries
5-years battery life with 1 battery
Pet Immune functionality
Holding several security approvals
In Stock
| Store | Stock |
|---|---|
| Qvis Technology Centre Ireland | 5 |
SKU
RF-EV1012PI-K4
Product Details
The sensor has a chip tuned wireless transmitter that communicates with a 80plus receiver as, for example, used in the ZeroWire control panel. The learn-in process of the sensor is identical to the process used with legacy sensors. Each sensor reports a unique ID code with each transmission. The sensor also reports the battery and transmitter condition (supervisory signal) to the panel every 18 minutes.
| Manufacturer | Aritech / xGen |
|---|---|
| Operating Temperature | -10 to +55°C |
| Certification | EN50131 Grade 2 |
| IP Rating | IP30 |
| Dimensions | 130 x 69 x 52mm (L x W x H) |
