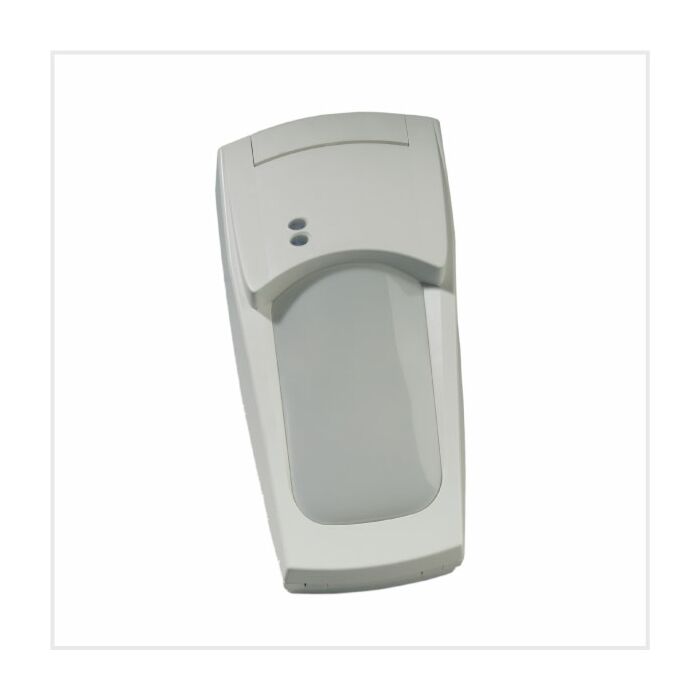

Aritech 20m PIR Volumetric Detector
Passive Infra Red motion sensor
High density "Step & Gliding Focus Multi Curtain" mirror
Plug-in electronics
Sealed optics
"Vector Verified Enha...
Passive Infra Red motion sensor
High density "Step & Gliding Focus Multi Curtain" mirror
Plug-in electronics
Sealed optics
"Vector Verified Enhanced" detection algorithm
Selectable range with full under crawl detection
On-site individual coverage pattern selection
3 alarm sensitivities
No adjustment required for different mounting heights
Tolerates wall angle deviation
Pry-off and cover tamper
Complies with EN50131-2-2
Several European approvals
In Stock
| Store | Stock |
|---|---|
| Qvis Technology Centre Ireland | 3 |
SKU
VE735
Product Details
Unlike conventional sensors, our patented Vector pyro captures multidimensional signals, allowing it to not only detect the presence of a thermal source but also determine its direction of motion. This breakthrough technology enhances detection probability by combining optics resolution with the pyro's advanced output. Our VE series motion detectors incorporate as well Vector Verified Enhanced (V2E) signal processing, which analyzes and distinguishes different signal sources. False alarms caused by non-thermal sources or environmental factors like stationary thermal sources or strong light are therefore filtered out.
| Manufacturer | Aritech / xGen |
|---|---|
| Supply Voltage | 9 to 15 VDC (12V nominal) |
| Operating Temperature | -10 to +55°C |
| Certification | VdS |
| IP Rating | IP30 |
| Dimensions | 93 x 175 x 66mm |
Write Your Own Review
Specifications
