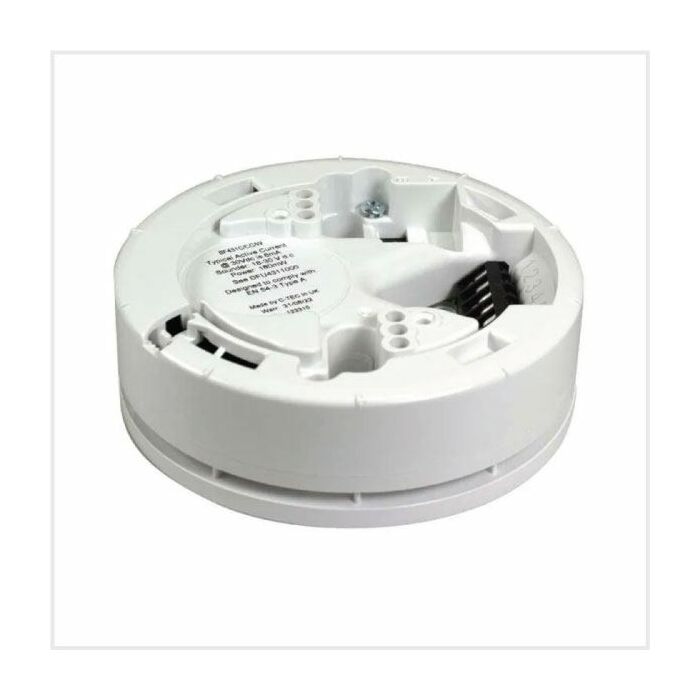

C-TEC ActiV Conventional Base Sounder
Approvals/certifications: Certified to EN54-3 by the LPCB & VdS
Protocol/compatibility: Compatible with C-TEC's CFP, FP, MFP and EP203 conventional...
Approvals/certifications: Certified to EN54-3 by the LPCB & VdS
Protocol/compatibility: Compatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels
Application/operation: Designed to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Sounder/Detector Base combination
Supply/operating voltage: 18 to 30V DC
Nominal SPL (Sound Pressure Level): 96dB(A)
Alarm current: At 30Vdc: 5.5mA; At 18Vdc: 3.8mA
Product dimensions (mm): 122 x 46 (not including optional detector and base)
IP Rating: IP21C (Type A)
Weight: 170g
Operating conditions/temperature: -10 to 55ºC
Notes: For compliance to EN54-3, the BF431QCP Quick Connect Plate must be used with the base device.
In Stock
| Store | Stock |
|---|---|
| Qvis Technology Centre Ireland | 2 |
SKU
BF431C/CC/W
Product Details
- Third-party certified to EN54-3 (Sounders)
- Impressive 96dB(A) sound output @ 1m
- Includes 31 selectable primary tones and an optional secondary tone
- Two volume levels (high and low)
- Alarm Current at 30Vdc = 5.5mA
- Alarm Current at 18Vdc = 3.8mA
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use
- Supplied with a BF431QCP quick connect plate and detector spur wires
- IP21C rated
| Manufacturer | C-Tec |
|---|
