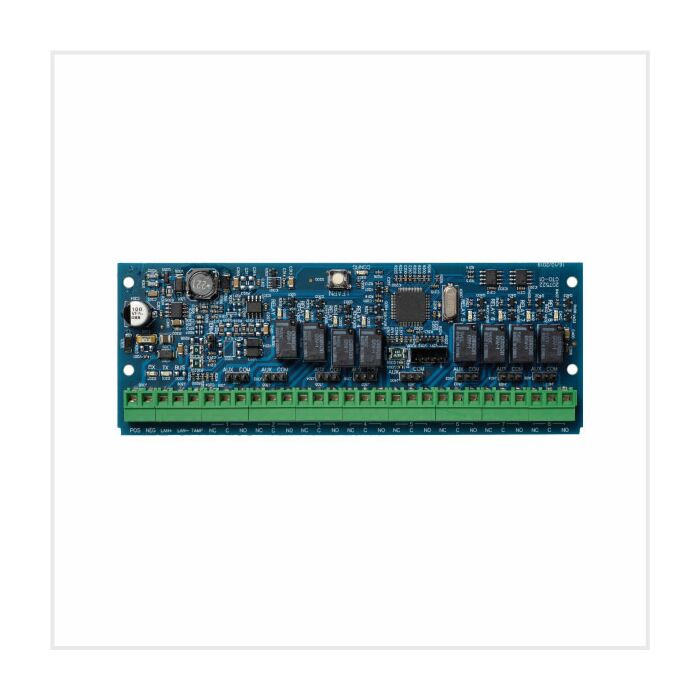

xGenConnect 8 Relay Output Expander
8 relay output expander for xGenConnect
Single Pole Double Throw (SPDT) Form C relays
3 selectable operating modes for each output
Status LED for...
8 relay output expander for xGenConnect
Single Pole Double Throw (SPDT) Form C relays
3 selectable operating modes for each output
Status LED for each output
Separate box tamper input
"NetworX" form factor
Firmware upgrade via USBUP-EUR flash tool or via DLX900 over the network
EN50131-3 CLASS II GRADE 2, INCERT T031, NFA2P
In Stock
| Store | Stock |
|---|---|
| Qvis Technology Centre Ireland | 2 |
SKU
NXG-508N
Product Details
The NXG-508N adds 8 additional relay outputs to the XGenConnect range of panels. Via a jumper, each Single Pole Double Throw (SPDT) Form C relay output can be configured in 3 different modes: as dry contact, or to switch the bus or externally supplied voltage to the output terminal, or to switch the bus ground to the output terminal. This allows to use the module in different applications. The status LED next to each output shows the actual state of the relay.
| Manufacturer | Aritech / xGen |
|---|
